Wolf
Screening

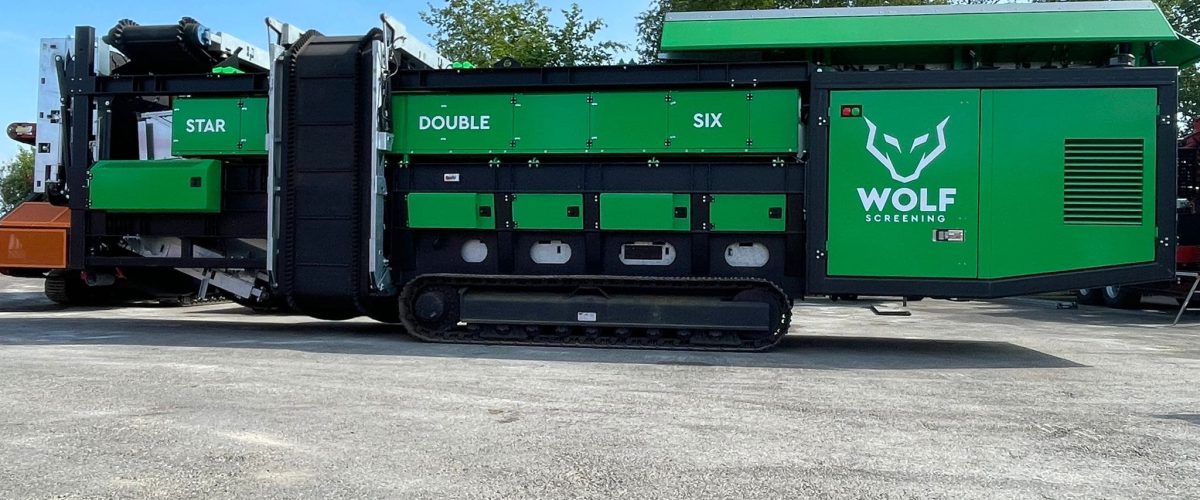

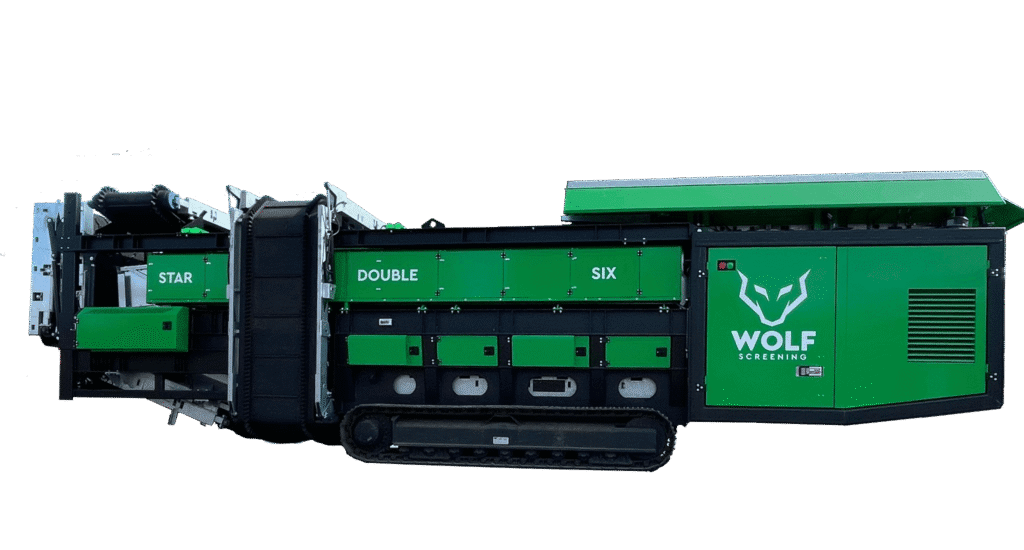

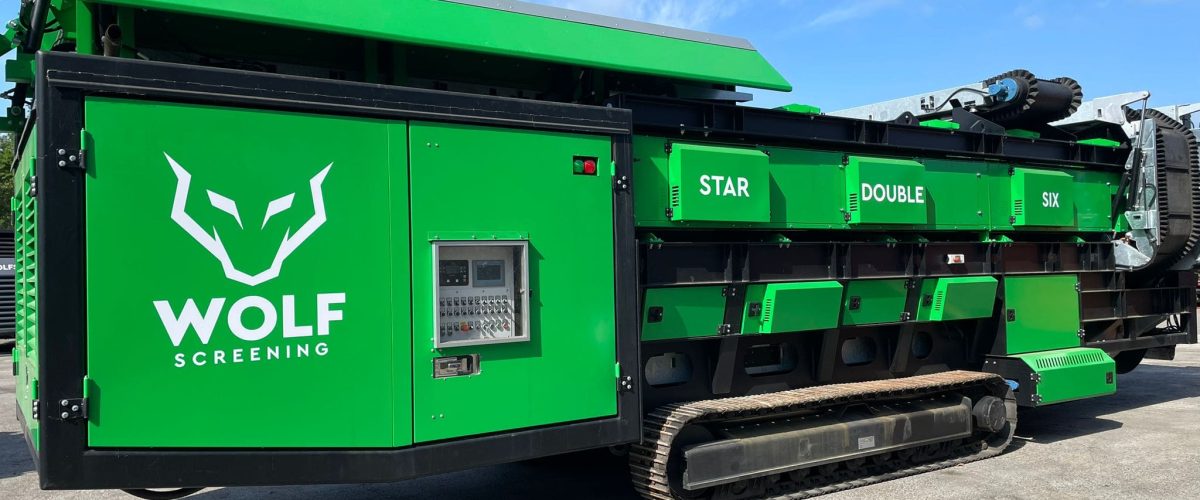

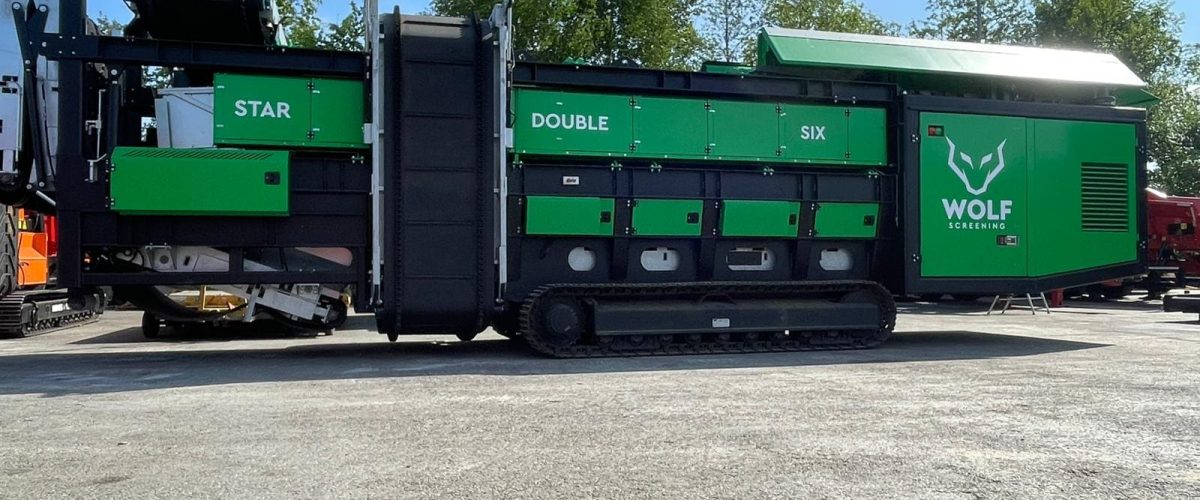

Star Double Six
WOLF Screening develops high‑quality mobile and stationary screening machines that excel in both capacity and flexibility.
The screening machine features a large screening surface divided over two decks. Thanks to the vario adjustment on the upper deck, the screening size can be continuously adjusted. A fraction change can be carried out within one minute.
This machine can sort three fractions and can be supplied as fully electric or hybrid‑powered. This makes WOLF Screening an excellent choice for users seeking maximum capacity and flexibility.
*The throughput capacity may vary depending on the material, material properties, moisture level and composition. All data are guideline values. Technical changes reserved.
WOLF Screening Star double six
2-fraction-mode: oversized fraction and medium fraction
3-fraction-mode: oversized fraction, medium fraction and fine fraction
| FEATURE | SPECIFICATION |
| Capacity | Up to 250 m³ or 60 tonnes per hour, depending on material |
| Length of the screening decks | 6.900 mm (deck 1) and 6.000 mm (deck 2) |
| Screening area | 10.3 m² and 9 m² |
| Infeed hopper | 6 m³ |
| Drive | Diesel-electric |
| Power | 60 kW |
| Weight | 22.000 - 25.000 kg (depending on the options) |
| Transport dimensions | (L x W x H) 12.100 x 3.000 x 3.500 mm |
CURIOUS IF the WOLF Star double six MEETS YOUR NEEDS? OUR DEDICATED TEAM OF EXPERTS IS READY TO ADVISE YOU!
