Wolf
shredder
9500 ET (hybrid)
The Wolf 9500 ET (hybrid) is suitable for
Wood
Wood waste
Tree roots
Green waste
Cable reels
Tree roots
Green waste
Cable reels
Pallets
Construction and demolition wood
Railway sleepers
Construction and demolition wood
Railway sleepers
Waste
Tyres
Construction waste
Bulky waste
Household waste
Commercial waste
Industrial waste
Paper (rolls)
Metal
Aluminium
Electronic waste
Household appliances
End-of-life vehicles
Car engines
Scrap metal
Aircraft wrecks
Car engines
Scrap metal
Aircraft wrecks
Discover the power of the new generation shredders
- Tiltable Hopper
For a continuous material flow and optimal capacity. - Two-shaft rotor
At maximum set hydraulic pressure, the rotors automatically reverse direction. - Easy to TRANSPORT
The shredder can be folded in easily and quickly, and can be transported on a low-bed trailer. - Simple controls
The shredder can easily be controlled remotely - FERROus METAL Separator
The magnet is easily adjustable in height.
- 2-piece discharge conveyor belt
Small discharge conveyor belt under the rotor housing to protect the main discharge belt. - EXTRA strong shaft housing
Built to last, even in extreme circumstances. - Control system
Efficient control system, remotely controlled. - Engines
2 × 250 kW electric motors, crawler undercarriage with CAT 3.6 diesel drive (55 kW) - Large
MOTOR COMPARTMENT
For easy access to all components.

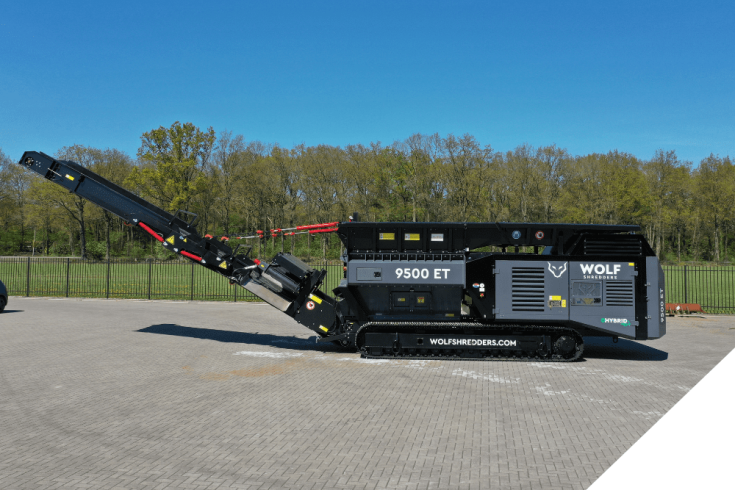

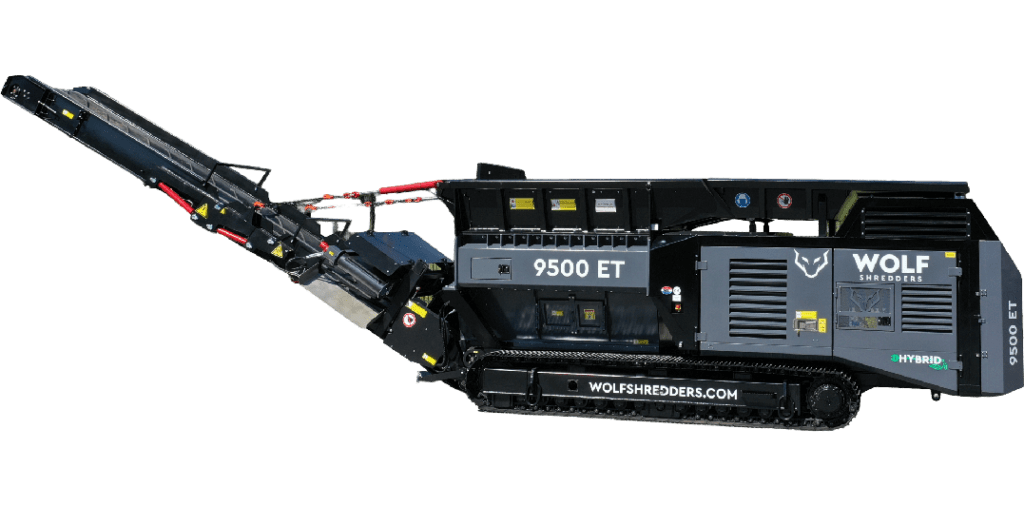

WOLF SHREDDER 9500 ET (Hybrid)
| FEATURE | SPECIFICATION |
| Mobility | The machine is fitted with a stable tracked undercarriage |
| Folds in quickly and easily and is easy to transport | |
| Drive | Engine compartment with easy access to all components |
| 2 x 250 kW electric motors | |
| CAT 3.6 diesel-powered crawler undercarriage, 55 kW | |
| Shafts | Automatic reverse system |
| Working length: approx. 2500 mm | |
| Diameter: approx. 950 mm | |
| Hydraulics | Twin tandem plunger pump |
| Output | Long, adjustable 2-part discharge conveyor, width approx. 1400 mm |
| Hydraulically adjustable discharge height | |
| Infeed | Large-capacity tilting infeed hopper for a constant material flow |
| Capacity: approx. 11 m³ | |
| Safety system | Emergency buttons and remote control with emergency stop |
| Controls | Efficient IQAN control system, remotely operable |
| Error display with text messages | |
| 4 pre-programmed and customisable shredder settings | |
| Total weight | Approx. 48000 kg |
| Dimensions | (L x W x H) 11360 x 3000 x 3220 mm |
Curious if the WOLF 9500 ET (Hybrid) Meets your needs? Our dedicated team of experts is ready to advise you!
